|This product is available for pre-order only|

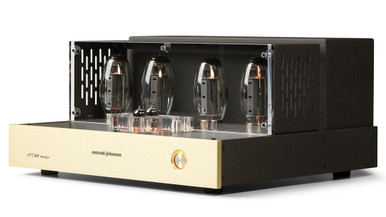

These amplifiers are designed for our own reference use as well as for industry professionals and dedicated audiophiles. As with previous anniversary products, these amplifiers will be offered as limited editions, with just 250 units of the ART150 and 125 pairs of the ART300 to be sold through selected conrad-johnson dealers and distributors.
The audio circuit of these amplifiers has just three elements, each as simple as possible, and each essential to the operation of the amplifier. A voltage gain amplifier (a single triode) is direct-coupled to a cathode coupled phase inverter (each phase handled by a single triode), which in turn drives the output stage. Power is developed by KT150 output tubes, chosen for their musical accuracy, high power, and reliability. A single pair is used for each channel to comfortably and reliably achieve the 150 Watts per channel power rating of the ART150, while two pairs are used to produce 300 Watts in the mono ART300. A small amount (about 12 dB) of loop negative feedback reduces distortion and achieves a sufficiently high damping factor to control reactive loudspeaker systems. To assure continued peak performance, the owner need only make a simple bias adjustment when new tubes are installed. Built in LED bias indicators allow the user to make this adjustment using only the supplied adjustment tool.
Separate, low impedance, discrete dc power supply regulators are provided for the input and phase-inverter stages, thoroughly isolating these stages from the power demands of the output stage. These power supplies are designed to maintain a rock solid supply at all audio frequencies.
Resistors are precision laser-trimmed metal foil types. CJD Teflon dielectric capacitors are used for coupling the inverter stage to the output stage, and to bypass the large value polypropylene capacitors in the regulated power supplies. Proprietary wide-bandwidth output transformers contribute to excellent high frequency performance. Even the machined gold plated OFC connectors and the internal wiring have been carefully selected for optimal sonic performance. Attention to every detail enable us to extract the full potential from our circuit designs and ensures that our products will perform to this potential for years to come. The ART150 and ART300 are built without compromise to achieve a new standard in musical performance, and they are built to last.
150 Watts rms per channel from 30 Hz to 15 KHz at no more than 1.5 % THD into 4 ohms (also available connected for 16 ohm loads)
300 Watts rms from 30 Hz to 15 KHz at no more than 1.5 % THD into 4 ohms (also available connected for 16 ohm loads)
