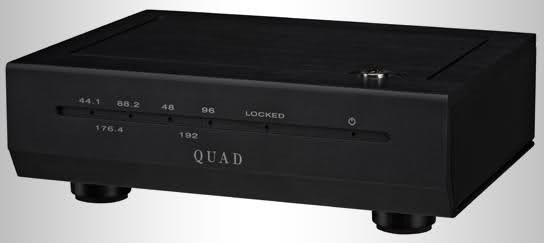

QUAD Elite Link D1 USB Digital Analog Convertor

With the popularity of computers as source, the Link D1 USB DAC allows consumers to enjoy listening to digital music sources from a computer (Windows or Mac) via USB connection.

Quality USB Product

Being USB 1.1 and 2.0 compliant, this device supports sampling frequencies ranging from 32kHz to 192kHz and incorporates a high quality Crystal CS4398 digital-to-analogue converter (DAC).

USB Interface Adapter

It can also serve as an USB interface simply to convert the data of music files from your computer to SPDIF signal for use with outboard DAC's.

Ease of Install

MAC users no custom USB drivers or software programs are required.

Windows pre windows 10 users are required to use the included CD driver disc or a free to D/L "QUAD XU1 Audio" Driver.

Windows 10 users require a sound knowledge of Windows 10 driver and device management to install and use this device. Drivers can be found at the below link.

Driver downloads can be found here: https://soundreference.com.au/cables-and-accessories/downloads/

SPECIFICATIONS:

    DAC Crystal CS4398
    Sampling Frequency 44.1kHz – 192kHz
    Maximum Sampling Frequency 192kHz
    Digital input 1 x USB (asynchronous mode)
    Digital output 1 x coaxial, 1 x Toslink optical
    Output voltage 4V (unbalanced)
    Output impedance 100Ω (unbalanced)
    Frequency response 20Hz – 20kHz (+/-0.2dB)
    Dynamic range 110dB
    Height 130mm
    Width 108mm
    Depth 42mm
    Carton size 600 x 400 x 340mm
    Net weight 0.7kg
    Gross weight 1.39kg
