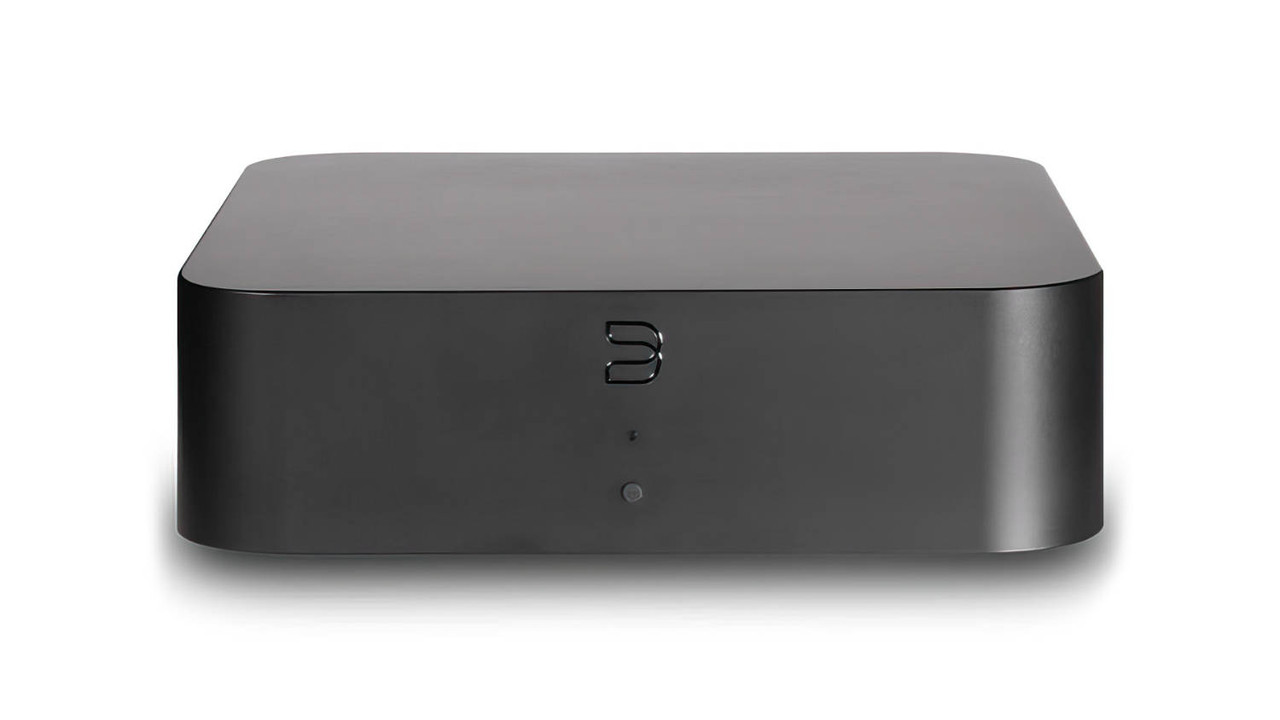

Bluesound Hub BluOS Network Audio Streamer with Phono

Complete your system with the HUB, a versatile network accessory that connects to a wide  variety of audio sources, allowing them to play back on any Bluesound player. Streaming audio is more flexible than ever with the HUB. Turn any wired audio device into a multiroom player by adding a HUB to transmit music to one or many Bluesound players around the home, wirelessly. This means you can now stream virtually any audio source, anywhere.

Play Anything, Anywhere.

Easily add a Bluesound HUB to any audio source and stream it through your Bluesound multi-room music system. Enjoy your favorite music from audio sources like a turntable or CD player in any other connected room of your home.

Easy Setup. Easy Control.

The HUB is easily selectable as an input in the BluOS app. A few taps on the BluOS app allows you to control your entire multi-room system from your smartphone, tablet, or computer.

A Treat for Vinyl Lovers.

Vinyl lovers will appreciate the HUB’s built-in audiophile-grade MM phono stage preamp that brings the audio from your turntable to all your Bluesound players for whole-home turntable streaming. The HUB acts as a networked low noise, wide-bandwidth phono pre-amp, delivering spectacular audio quality so you can enjoy your vinyl collection in any or every room of your home.

Plenty of Connectivity Options.

Take advantage of the HUB’s wealth of digital and analog input options including HDMI eARC, Coax digital, TOSLINK optical, analog RCA, and a MM Phono input. Each HUB can simultaneously stream one digital and one analog source, and up to four HUBs can be supported on a single network.

Minimal Wires. No Mess. No Hassle.

With a compact, minimalist design and a choice of high-speed dual-band Wi-Fi or wired Gigabit ethernet connection options, the HUB provides unlimited placement flexibility, so you don’t have to move players around or deal with wires. By keeping its USB-C connected power supply external, the HUB stays compact, creating more opportunities for you to add HUBs around the house and preserve simplicity.

Specifications

Operating System: BluOS

• BluOS Controller Operating System: iOS, Android, Windows, MacOS
• Control System Integrations: Control4, Crestron, URC, RTI, ELAN,Lutron
• Simultaneous Audio Streams:
• 2 per HUB
• 1 x analog audio input, 1 x digital audio input
• Maximum Number Units: 4x HUB on single network (8 simultaneous streams)
• Native Sampling Rates: up to 192 kHz
• Bit Depth: 16-24
• Signal-to-Noise Ratio:
•  >100 dB (Line input)
•  >80 dB (Phono MM input)
•  Distortion: <0.03% 20-20 kHz -1dBFS output
•  Frequency Response 20-20 kHz +/-0.3dB; 50 kHz -3dB
•  Power Supply: Universal USB-C Power adapter (Input:100-240V AC/0.3A Output:5V/2A)
•  Ethernet/LAN: Ethernet RJ45, GigE 1000 Mbps
•  Wi-Fi Built In: Wi-Fi 5 (802.11ac), 2.4/5GHz
•  Analog Line Input: 1 x Stereo RCA
•  Phono Input: 1 x Stereo RCA (Moving Magnet)
•  Optical Input: 1 x TOSLINK digital optical
•  Coaxial Input: 1 x RCA (75 ohms)
•  HDMI Input: HDMI eARC with CEC
•  USB Input: Type A (for BluOS firmware upgrade only)
•  Audio Output: Network
•  Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
•  Status Indicator: Front Panel LED
•  Function Button: Front Panel Function Button
•  Power Consumption: 0.5W Network Standby
•  Finish: Black; Matte Satin Paint
•  Version: CB130
