Wharfedale Diamond 12.3 HCP Home Theatre Speaker Pack

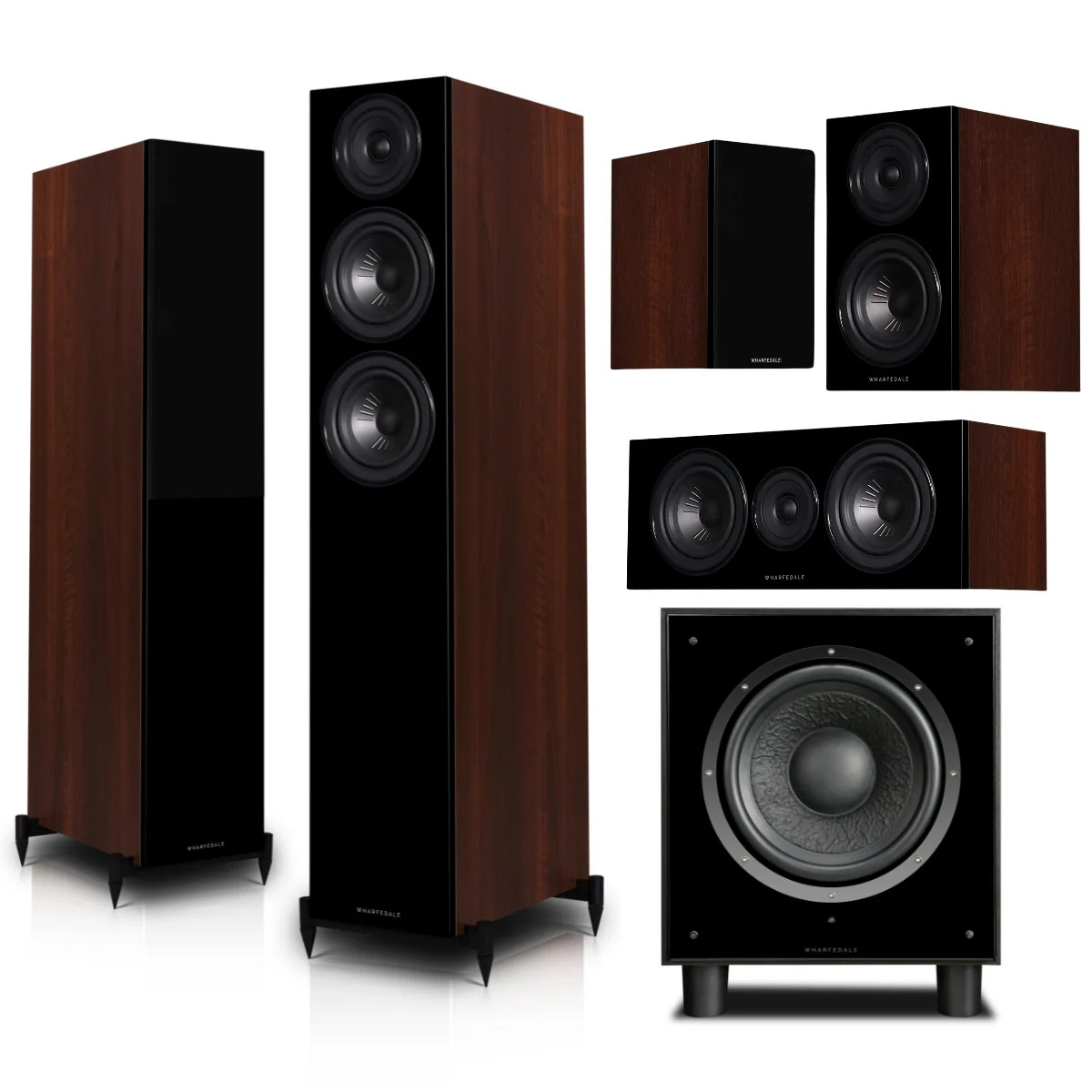

Diamond 12.3 Home Cinema Pack consists of the award-winning Diamond 12.3 floorstanding loudspeakers for fronts, acclaimed Diamond 12.1 bookshelf loudspeakers for rears, the astute Diamond 12.C centre channel and the whopping 10” powered Wharfedale subwoofer SW-10. It’s a full suit of high Diamonds.

Specifications

Diamond 12.3
General description 2-way bookshelf speaker
Bass driver 5"(130mm) advanced PP Cone
Treble driver 1"(25mm) Textile Dome
Recommended amplifier power 20-100W
Nominal impedance 8Ω Compatible
Sensitivity(2.83V @ 1m) 88dB
Frequency response(+/-3dB) 65Hz ~ 20kHz
Dimensions ( H x W x D ) 312 x 180 x (250+28) mm
Net weight 6.8kg/pcs
-
Diamond 12.1
General description 2-way centre speaker
Bass driver 2x5"(130mm) advanced PP Cone
Treble driver 1"(25mm) Textile Dome
Recommended amplifier power 20-120W
Nominal impedance 8Ω Compatible
Sensitivity(2.83V @ 1m) 90dB
Frequency response(+/-3dB) 90Hz ~ 20kHz
Dimensions ( H x W x D ) 180 x 480 x (180+28) mm
Net weight 8.5kg/pcs
-
Diamond 12.C
General description 2-way centre speaker
Bass driver 2x5"(130mm) advanced PP Cone
Treble driver 1"(25mm) Textile Dome
Recommended amplifier power 20-120W
Nominal impedance 8Ω Compatible
Sensitivity(2.83V @ 1m) 90dB
Frequency response(+/-3dB) 90Hz ~ 20kHz
Dimensions ( H x W x D ) 180 x 480 x (180+28) mm
Net weight 8.5kg/pcs
-
SW-10
Drive Units 1x(10") 250mm cone long-throw
Frequency Response 40 - 120Hz +/- 3dB
Amplifier Power Output 200W
Peak Power Output 350W
Line Input Sensitivity 200mv for maximum output
Crossover Range 30-150Hz
Inputs Stereo Line In (2 x RCA Phono)
Mono (LFE) Line In (RCA Phono)
Input Impedance Line Input 10kΩ
LFE 5kΩ
Signal-to-noise ratio (S/N) ≥85dB
Avg. Max Output @1m 110dB
Features Phase inversion, Auto on-off
Dimensions (HxWxD) 416 x 336 x 381mm
Net weight 15kg
