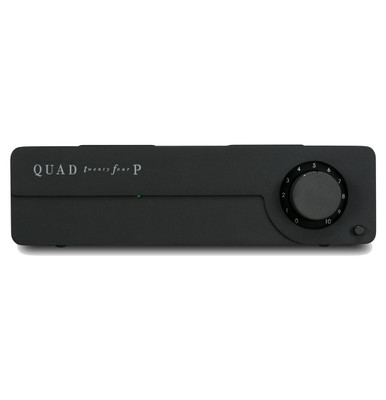

Quad QC-24P Valve Phono Pre Amplifier. Lancaster Gray.

With the analogue purist in mind the QC -24P has a moving magnet/moving coil toggle switch and direct/variable level control over volume for use with all kinds of amplification.

For the connoisseur, there is the Quad QC-24P dedicated valve phono stage. This has been designed for Quad by valve supremo Tim DeParavicini - probably the finest valve amplifier designer in the world today.

It has been voiced by the finest ears in the industry and will add an entirely new dimension to your enjoyment of vinyl recordings. This unit features a moving magnet/ moving coil toggle switch on the rear, a choice of input sensitivities and a direct full level output or variable level output if you wish to connect directly to a power amplifier.

Specifications

Valve Complement    4 x 6111
Total Harmonic Distortion    <0.08% (A-weighted)
Frequency Response (RIAA/IEC equalisation)    20Hz - 20kHz (+/-0.5dB)
Hum and Noise (mm position,input shorted)    Better than 60dB
Input Impedance
Moving Magnet    47k½
Moving Coil    10½
Stage Gain
High Sensitivity    1.3mV (MM)/130µV (MC)
Medium Sensitivity    2.6mV (MM) / 260µV (MC)
Low Sensitivity    5.2mV (MM) / 520µV (MC)
Nominal Output Level(ref 5.2mV, MM, Low)    1.0V
Inputs    Selectable MM/MC cartridge
Outputs    1 x Fixed line level, 1 x Variable line level
Power Consumption    15VA maximum
Dimensions (H x W x D)    90 x 220 x 300mm
