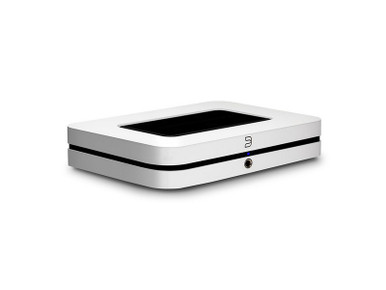

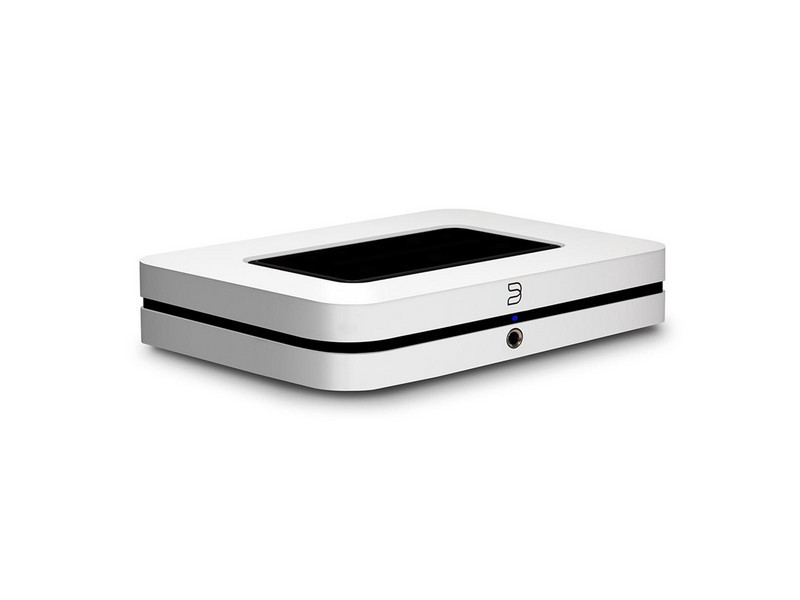

Bluesound Node N132 Wireless Multi-Room Hi-Res Music Streamer

Simply put, there is nothing like the NODE. With re-engineered components and circuitry for even better performance, the original wireless hi-res music streamer now features built-in THX AAA™ headphone technology, DSD playback, and more.

Connect it to your stereo system and stream music, radio, podcasts, and more from popular streaming services or your personal library. With HDMI eARC, Dolby Digital decoding, and Apple AirPlay 2, the NODE is at the core of your home audio experience, with the flexibility to wirelessly connect to Bluesound Players for seamless multi-room music throughout the home.

Key Features
ESS ES9039Q2M SABRE® DAC
Quad-core 1.8 GHz ARM® Cortex™ A53 processor
THX AAA™ headphone amplifier technology
Full-sized 1/4″ (6. 3mm) headphone output
HDMI eARC, Optical inputs
Dirac Live Ready*
Five programmable quick-touch presets
User interface with proximity sensor
AirPlay 2 integration
Spotify Connect + TIDAL Connect

* Available via future software update.

Better Down to Every Sonic Detail
The NODE delivers precision-engineered sound with its improved ESS SABRE® DAC (ES9039Q2M) and audiophile-grade circuitry, designed to reduce jitter and interference. Enjoy clean, clear audio that brings out every detail of your music through your favourite amp or powered speakers.

Your Music and More
Stream everything at the highest quality with control of the BluOS app, from popular music streaming services to personal music libraries with thousands of tracks in HD quality. Apple AirPlay 2 and aptX Adaptive Bluetooth* are also built-in for even more music from more apps and services.

Go Beyond the HiFi System
Wirelessly connect the NODE to Bluesound speakers and stereo components to create an immersive multi-room system, powered and controlled by BluOS throughout the home with dual band Wi-Fi and gigabit ethernet. Enjoy HiFi quality sound in any and every room without dropouts or interruptions.

World-Class Headphone Technology
Experience lifelike headphone listening with THX AAA™ headphone technology, providing the world’s most linear response and minimal distortion for exceptional clarity. Connect your high-performance headphones to the 1/4″ jack and enjoy audiophile-quality sound.

Connect Everything
The NODE is fully equipped with digital/analogue inputs and outputs, making it incredibly versatile in any stereo or home audio setup with Stereo RCA, Optical, USB, and more. Connect it to your TV via HDMI eARC and use its built-in IR learning for seamless universal control of any remote. Program up to five presets on a proximity-sensing touch panel for quick and easy access of your favourite sources.

Smart Acoustics
With Dirac Live Room Correction* as an available upgrade, you can use sophisticated room correction technology and measure room acoustics to eliminate standing waves, reverberations, and other unwanted distortions. A calibration kit with a high-sensitivity mic is also required and available from Bluesound with additional purchase.

Specifications:
Audio
Supported Audio File Formats MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
Supported Hi-Res Audio File Formats FLAC, MQA, WAV, AIFF, MPEG-4 SLS
DSD Support DSD256, Available via Future BluOS Update
Supported Multi-Channel Audio Formats Dolby Digital®
Native Sampling Rates Up to 192 kHz
Bit Depth 16-24
Audio Controls & EQ BluOS Controller App
DAC ESS ES9039Q2M
Signal-to-Noise Ratio -118 dB
Distortion THD+N, 0.0007%
Headphone Continuous Output Power (THD <0.1%) 160 mW, 16 Ω / 230 mW, 32 Ω / 53 mW, 250 Ω / 22 mW, 600 Ω

Software & Integrations
Operating System BluOS
App Controller Operating Systems iOS, Android, Windows, macOS
Processor ARM® Cortex™ -A53, Quad-Core, 1.8 GHz Per Core
Supported Network File Sharing Server Message Block (SMB) up to 200,000 Files
Album Art Supported JPG, PNG
Music Services & Internet Radio 23+ Music Services & Internet Radio
3rd-Party Integrations AirPlay 2, Spotify Connect, TIDAL Connect, Roon Ready, Dirac Live Ready
Control System Integrations Crestron, Control4, RTI, ELAN, URC, Lutron
Voice Control Integrations Amazon Alexa Skills

Connections
Power Supply Universal Bi-Pin AC Cord Input (100-240 AC)
Ethernet/LAN Ethernet RJ45, Gigabit 1000 Mbps
Wi-Fi Built In Wi-Fi 5 (802.11ac), Dual-Band
Bluetooth Quality Bluetooth 5.2 aptX Adaptive
Bluetooth Connectivity Two-Way (Transmit & Receive)
IR Optical Built In IR Sensor Built In – Front Panel with IR Remote Learning
IR Input 3.5 mm Jack
Optical/Analogue Input Combo – Mini TOSLINK/Stereo 3.5 mm
HDMI Input HDMI eARC
USB In Type A (FAT32 Formatted) – External Storage Only; Local Server Mode
Audio Output Analogue RCA Stereo with Fixed Option; USB Audio 2.0 (Type A)
Coaxial Output RCA
Optical Output TOSLINK Digital Optical
Trigger Out 12 Volt
Headphone Output 6.3 mm Stereo; Bluetooth
Subwoofer Output RCA x 1; Wireless to PULSE SUB+

User Interface & Controls
Status Indicator LED x 2
Play/Pause Button Touch LED
Volume Control Buttons Touch Slider LED
Preset Buttons Touch LED x 5
Proximity Sensor Yes

General
Finish Black or White: Matte Satin
Storage Environment -10°C to 50°C, 20% to 80% Relative Humidity
Operating Environment 0°C to 40°C
Version N132
Product Dimensions (W x H x D) 220 x 46 x 146 mm / 8.7 x 1.8 x 5.7 in (Non-Metric Measurements are Approximate)
Product Weight 1.09 kg / 2.4 lb
Included Accessories 120 V AC Power Cord, 230 V AC Power Cord, Stereo RCA to RCA Cable, Ethernet Cable, Mini Jack to Toslink Adapter, Safety/Warranty Guide, Quick Setup Guide, Dirac Live Ready Info Card
