Naim FraimLite Base plus one (1) Standard Level Shelf

For entry-level Naim Audio systems, our FraimLite features the same tripod-style configuration, carefully optimised shelf spacing and high-quality material construction of our reference-quality Fraim.

It retains the cup-and-cone interface system used by its bigger brother too, but omits the dual layer base and ball-bearing decoupled glass shelf. Reference Fraim levels can be incorporated into the same system as FraimLite so that you can upgrade to our top of the range equipment support on a level-by-level basis.

Features

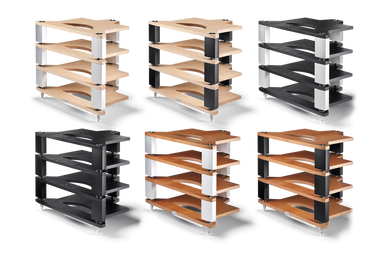

    Fraim platforms available in Cherry, Natural Ash and Black finishes
    Extruded anodized aluminium Fraim legs available in three heights, and in silver or black finishes
    Modular design allows for system expansion over time
    Decoupled structure with inter-level cup-and-cone interfaces underneath shelves
    Stainless steel floor spikes for maximum isolation
    Optimised shelf spacing to reduce magnetic interaction between components

Technology & Craft

FraimLite takes the core Fraim concepts and components and strips them back to the fundamentals to create entry-level engineered support for less ambitious Naim Audio systems or lower budgets. Stripping back to the fundamentals however implies no lack of performance or aesthetic quality. The philosophy of the entire Fraim concept is based on engineering integrity, and that philosophy is fully expressed in FraimLite.

Rather than two-stage base level isolation, FraimLite incorporates just a single set of three cone and cup minimal contact interfaces. Each FraimLite shelving level then forgoes the Fraim’s glass sub-shelf to support equipment directly on veneered composite panels.

A FraimLite module comprises a single element base level with multiple shelving levels above. The base level and each shelving level incorporate a single set of cone and cup interfaces. As with the reference-level Fraim, FraimLite support enables Naim Audio electronics to perform by providing the ideal motionless environment. Even modest Naim Audio  electronics will benefit, with greater detail resolution, more accurate dynamics, and simply more music

Product Specification

Finish Uprights     Natural anodised, Black anodised

Shelves     Ash, Cherry, Black Ash

Physical Overall Dimensions     643 x 442 mm (W x D)

Shelf Dimensions     452 x 340 mm (W x D)

Available Height (per level)

Standard level 131 mm
Medium level 206 mm
Tall level 280 mm

Level Height

Standard level 150 mm
Medium level 225 mm
Tall level 299 mm
Base level 79 mm

Shipping Weight

Standard 5.4 kg
Medium 6 kg
Tall level 6.65 kg
Base level 4.7 kg
Twin level 8.9 kg
Base and level 8.2 kg

Weight

Standard level 3.5kg
Medium level 4.1kg
Tall level 4.75kg
Base level 2.8kg

Please note image is for illustrative purposes only
