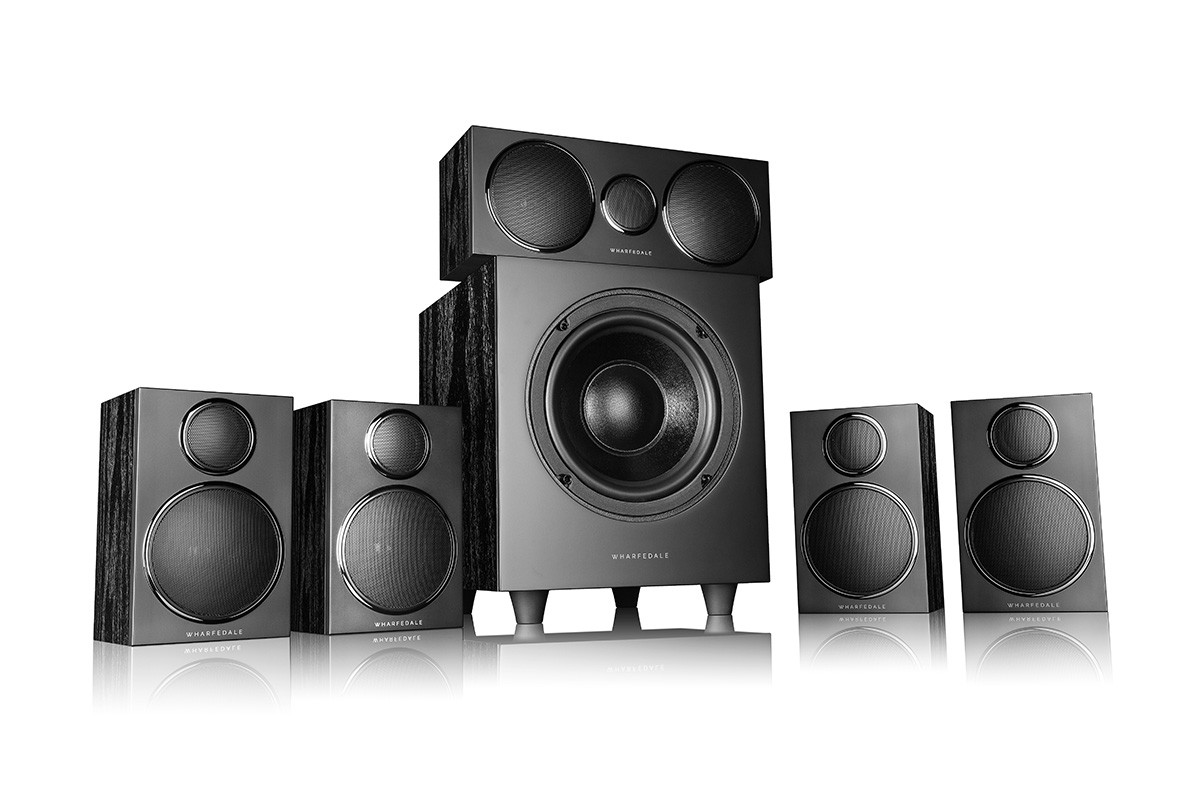

Wharfedale DX-3 HCP Moviestar 5.1 Speaker
Black Oak or Walnut
The Wharfedale DX-3 is compact, stylish and offers incredible value for money. Marking the 3rd iteration of the acclaimed system, the satellite speakers bring in new heritage and are now styled closer to the award-winning Diamond 12 series, making for a more contemporary solution. The cabinets have also been revised in looks but also with a new structure, not only to enhance the aesthetic but also to aid with the resonant control and dynamic performance, resulting in an even more impressive mini loudspeaker cabinet. Handling dialogue, sound effects and music with ease, solidity and detail, the DX-3 is extremely versatile.
As with the preceding DX-2, the DX-3 includes four satellite speakers for the front and rear, a compact centre speaker, and an powered subwoofer that has also been tweaked in conjunction with the satellite speakers. Offering a more sophisticated performance, each of the satellite speakers employs a silk dome HF unit and 75mm bass driver engineered from a polypropylene base, which offers a performance akin to the PP cones featured in the Wharfedale Diamond 12 series.
Model | DX-3 Satellite | DX-3 Centre |
---|---|---|
General description | 2-Way Closed Box Bookshelf Speaker | 2-Way Aperiodic Centre Channel Speaker |
Bass driver | 3"(75mm)Woven Polypropylene cone | 3"(75mm)Woven PP Polypropylene cone x2 |
Treble driver | 3/4"(19mm) High frequency silk dome | 3/4"(19mm)High frequency silk dome |
Sensitivity (2.83V @ 1m) | 86dB | 87dB |
Recommended amplifier power | 25-100W | 30-100W |
Nominalimpedance | 4Ω | 4Ω |
Minimum impedance | 3.6Ω | 3.6Ω |
Frequency response(+/-3dB) | 100Hz - 22kHz | 80Hz - 22kHz |
Bass extension(-6dB) | 100Hz | 70Hz |
Crossover frequency | 2.8kHz | 2.6kHz |
Dimensions | ||
Height | 19omm | 120mm |
Width | 120mm | 310mm |
Depth (with terminals/grille) | 122mm | 122mm |
Net weight | 2kg | 2.7kg |
Finish | Black oak / Walnut | Black oak / Walnut |
Model |
Subwoofer | |
General description | Active Dynamic-Drive IB subwoofer system | |
Bass driver | 8"(200mm)Woven Polypropylene cone | |
Amplifier Power Output | 70W | |
Peak Power Output | 150W | |
ine Input Sensitivity | 10omv for maximum output | |
Crossover Range | 40Hz - 150Hz | |
nputs | 2 X RCA Phono,LFE Line-in RCA | |
Input Impedance | Line In 10kΩ LFE 5kΩ |
|
Signal-to-noise ratio (S/N) | 285dB | |
Avg. Max Output @1m | 105dB | |
Features | Low pass filter slope adjustment Phase inversion Auto on-off |
|
Dimensions(mm) | ||
Height (on plinth) | 298(+30)mm | |
Width | 268mm | |
Depth (with terminals/grille) | 300(+22)mm | |
Net weight | 7.8kg | |
Finish | Black oak / Walnut |
